some bells and chimes from the bell-foundry Oberascher and bell ringing units from Schauer & Sachs |
 |
 |
| Chimes for the seminary in Salzburg | |
 |
 |

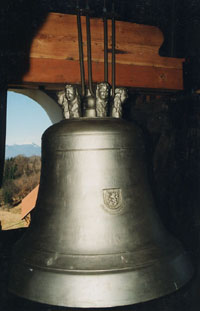

| The new bell for Finkenstein | Bell-hoist in Aigen im Ennstal |
 |
 |
|

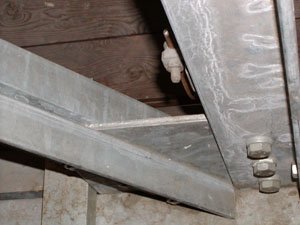

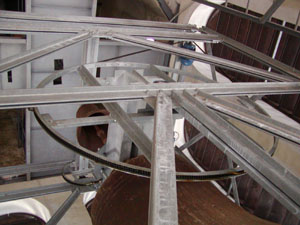

Vienna-Simmering - new venetian blinds, a new bell cage for the big bell, Ø 210cm, 1110 Vienna |
|
|
|
Plot-metal fraternity |
 |
 |
 |
 |

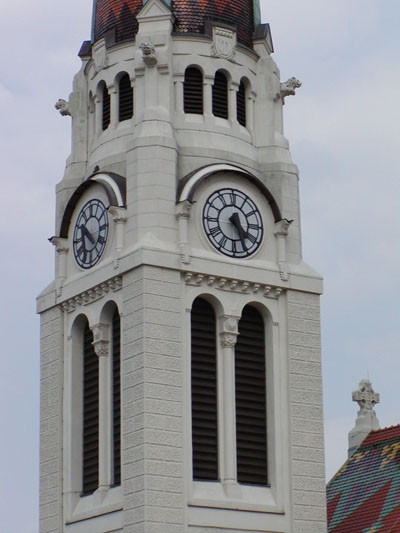

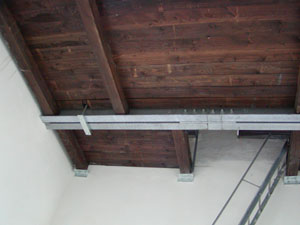

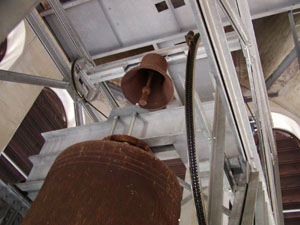

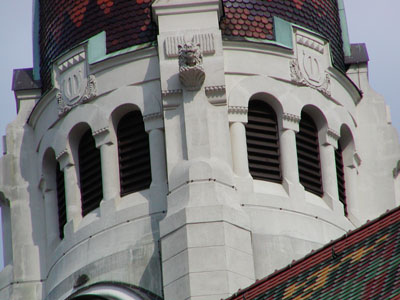

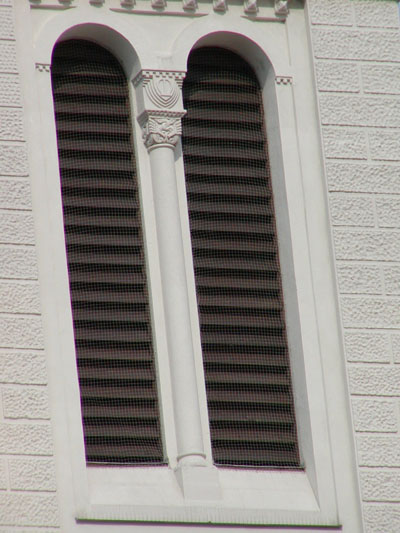

| new venetien blinds for soundwindows and a new floor for the bellfry, Curch in Neusimmering, 1110 Vienna, Austria | |
 |
 |

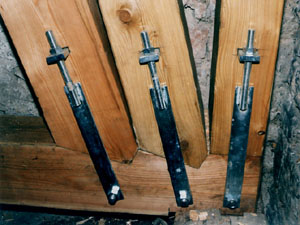

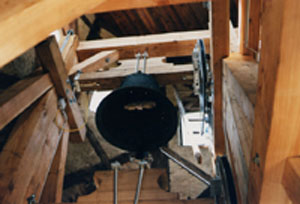

| a new bell cage for 3 bells, larch wood, tention combination St.Valentin/Lantschach, Austria | |
 |
 |
| Reit im Alpbachtal, a new wooden bell cage for six bells | a free-hanging bell in the Steiermark |
 |
 |
| the chimes of the Salzburger cathedral, casted in the bell casting OBERASCHER with bell ringing units from the firm SACHS | |
 |
KIEW MIHAILSKYI
CLOISTER a carillon with 36 bells, more than
3 octaves, bell sizes between 15 and 300cm. Alternatively playable
with magnetic hammers, controlled by an electric main-clock, combined
with an electric manual or with manual played hand- and feetlever-system,
similar to an organ-manual.
3 melodies for 1/4, 1/2, and 3/4 time, 22 melodies from the ukrainian Volklore, played each time before the hour-touch, at midday and at 24 o clock the Ukrainian hymn is played in her entirety before the 12 chimes sound. The installation is combinated with a 4-sides tower clock from Schauer & Sachs |
| Belltower of the Mihailskyi-cloister with a 4-sides tower clock | |
 |
 |

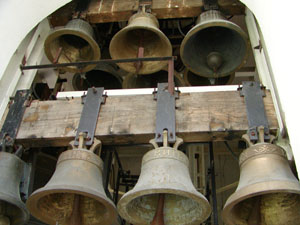

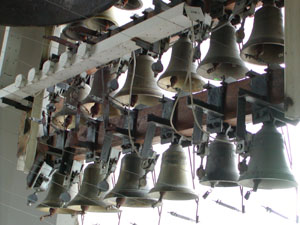

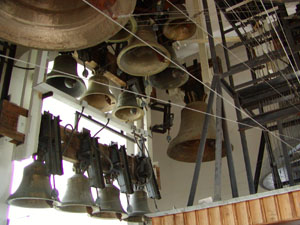

| East side, bells from 50 to 70cm | Nord side, bells from 15 to 30cm |
 |
 |

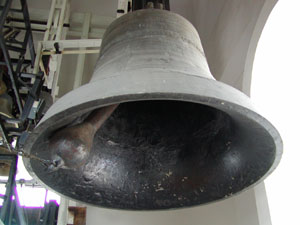

| Sought side, the big bell, ~ 300cm | West side, bells from 90 to 120cm |
 |
 |

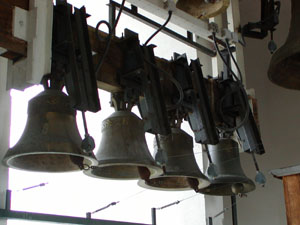

| Magnetic hammers for the smaller bells ( 0,3 - 2,5kg ) and bigger bells ( 3 - 5kg ) | |
 |
 |
 |
|

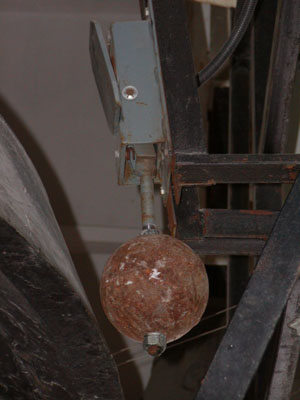

| The big magnetic hammer, ~15kg |

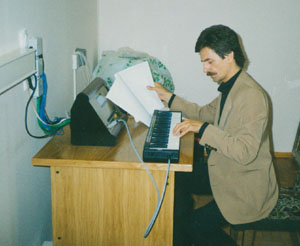

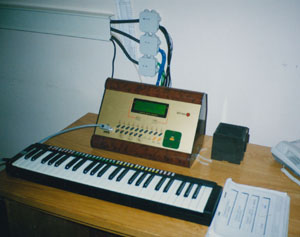

control-unit with main clock and manual |

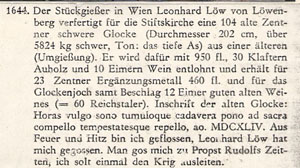

| Historical order from the 17.century for the casting of a bell | Leonhard
Loew v. Loewenberg receives 930 £, 30 fatom wood and 10 buckets of wine,
for the founding of the "Deep-A-bell", and also 12 buckets of
a good old wine for the bell-yoke inklusive the fittings.
anno MDCXLIV
|
 |
The bell founding
| Formation of the Kundl-bell, 3500 kg | |||
 |
 |
 |
|
| the pipe of the bell was built | the bell pipe was waxeed | the fake bell was put on | |
 |
 |
 |
|
| the fake bell was put on | the picturres were put on | the cope was animated | |
 |
 |
 |
|
| the cope was taken off | the fake bell was knocked off | the angel-head of the bell was built | |
 |
 |
 |
|
| the cope was put on | the form was digged and mashed | the founding was prepared | |
 |
|||
| the founding the bell metal runs into the mould of the bell | |||
 |
 |
 |
|
| the bell was released from the cope | the bell was released from the cope | the finished bell | |
 |
 |
||
| the voice of the bell was proved | the bell solemnity | ||

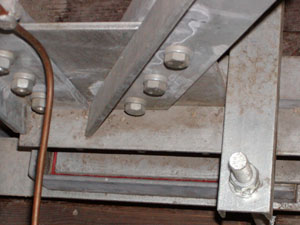

Vibration-damping shoe
